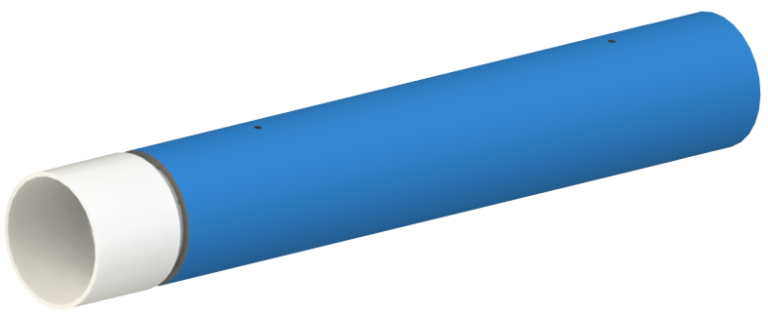

Field Flare Spool With Slide Fit Liner Type ES1048

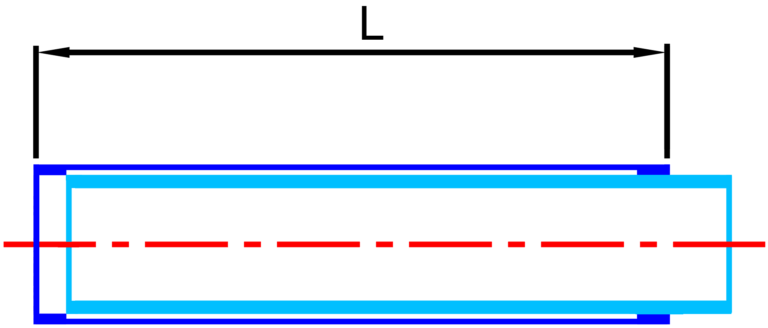

The ES1048 field flare spools are supplied in lengths 3000mm long, the spool can be cut down as many times as practical and used to manufacture many shorter lengths, each time the pipe spool flanged ends must be fabricated on site. Flanges can be welded, used in conjunction with a welded stub end to provide a rotating flange or the pipe threaded and a threaded and hubbed companion flange fitted. Once the steelwork is finished with the flanges in place the liner is introduced back into the steelwork and the PTFE cut to the correct length and flared to produce the finished spool. CRP can supply all types of flanges and stub ends along with the PTFE lined field flare piping to fabricate the spool. A full range of field flare tooling can be purchased from CRP along with the piping.
