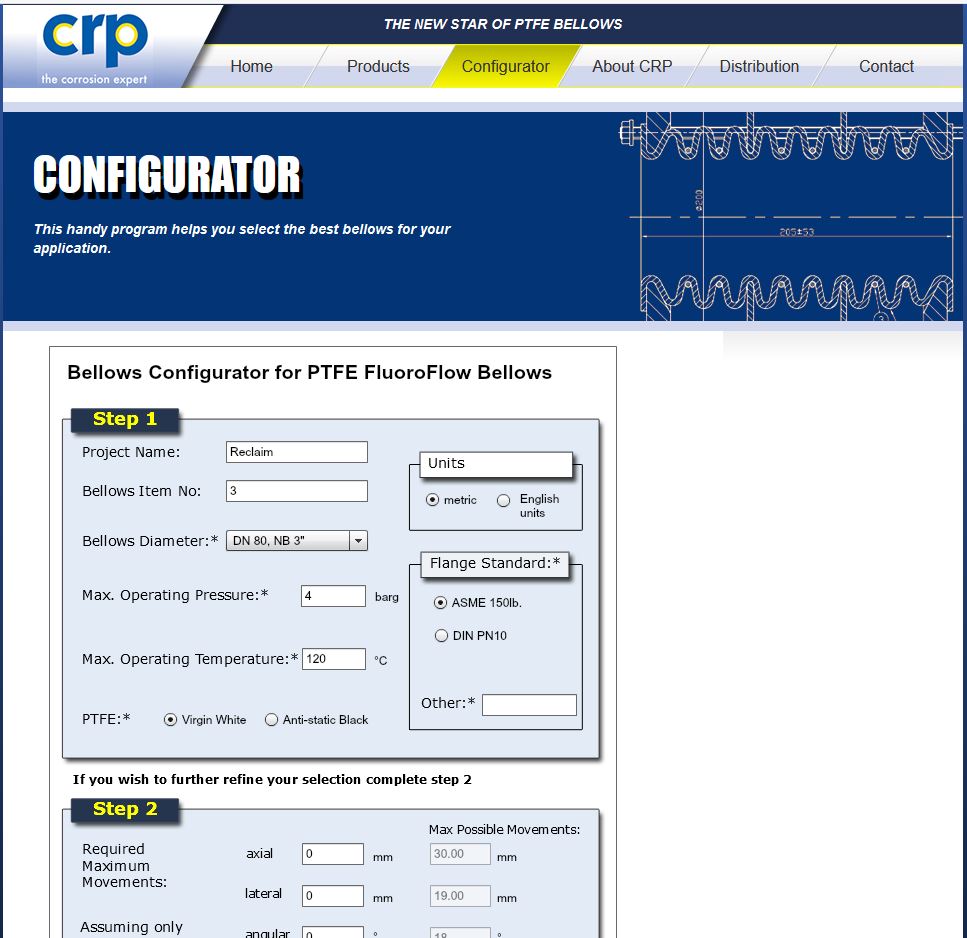

Online Bellows Configurator

Whilst you can check the allowable pressure and temperatures and movements in our bellows catalogue we also offer as an alternative an online configurator.

It provides 3 functions:

  • The configurator can help with the selection of bellows based on the maximum pressures and temperatures.
  • It can also calculate the overall allowable movements when combining axial, lateral and angular movements, providing confirmation that a particular bellows would be suitable in a specific application.
  • Or you can select a particular nominal bore and convolution of bellows and confirm that this would be suitable for use in your application.

You can start the configurator by following this link
